Compression Terminals - C4-C Type

(C4-100C)
0
Package Qty: 3
Quantity:

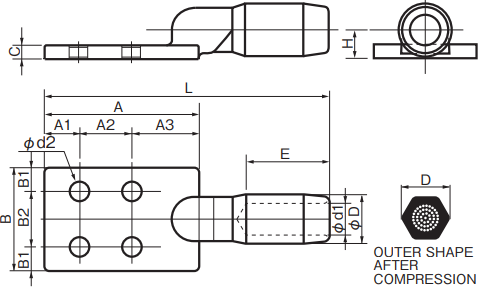

Specifications
  • øD: 23mm / 0.91"
  • ød1: 12.6mm / 0.5"
  • E: 39mm / 1.54"
  • A: 115mm / 4.53"
  • A1: 25mm / 0.98"
  • A2: 40mm / 1.57"
  • A3: 30mm / 1.18"
  • B: 75mm / 2.95"
  • B1: 17.5mm / 0.69"
  • Applied Wire: Strand Outer Diameter: 12mm / 0.47"
