Compression Terminals and Clamp Connectors
∕
Compression Terminals
∕
C1 Type
∕ Compression Terminals - C1 Type
Compression Terminals - C1 Type
(C1-14)
0
Package Qty: 3
Quantity:
Add to Quote

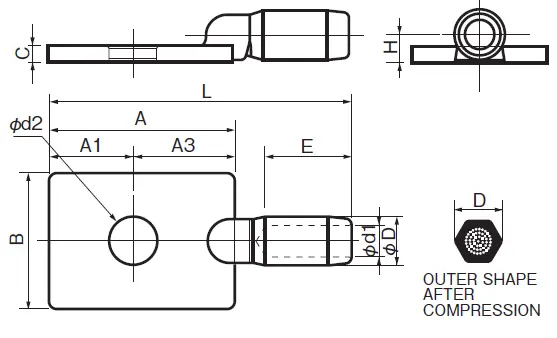

Specifications
øD:
14mm / 0.55"
ød1:
5.2mm / 0.2"
E:
26mm / 1.02"
A:
55mm / 2.17"
A1:
25mm / 0.98"
A3:
30mm / 1.18"
B:
40mm / 1.57"
Applied Wire: Strand Composition (Number of wires/mm):
7/1.6
Applied Wire: Strand Outer Diameter:
4.8mm / 0.19"
