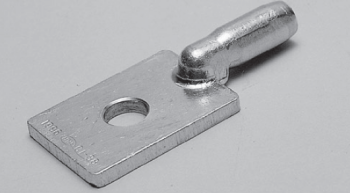

Compression Terminals - C1-C Type

(C1-14C)
0
Package Qty: 5
Quantity:

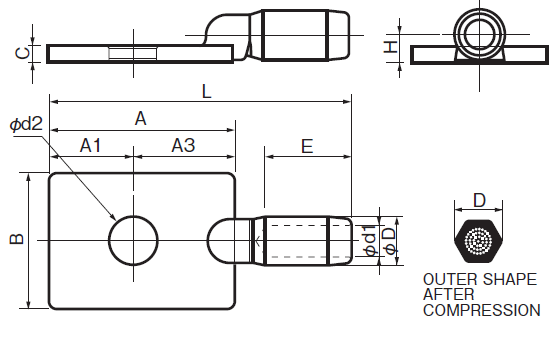

Specifications
  • øD: 14mm / 0.55"
  • ød1: 4.8mm / 0.19"
  • E: 26mm / 1.02"
  • A: 55mm / 2.17"
  • A1: 25mm / 0.98"
  • A3: 30mm / 1.18"
  • B: 40mm / 1.57"
  • Applied Wire: Strand Outer Diameter: 4.4mm / 0.17"
