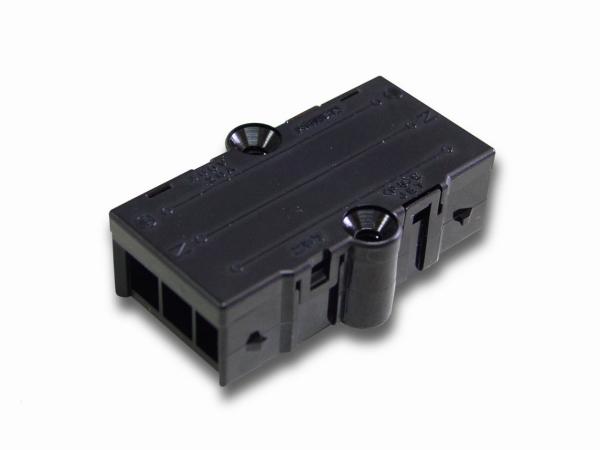

Terminal Block, Single Line

(NPJ B01-3P)
0
Package Qty: 20
Quantity:

Features
  • Compatible with 14 & 12 AWG wiring
  • Box-free splicing — UL QAAV compliant (pending)
  • Secure two-point copper contacts for reliability and conductivity
  • Visual confirmation of proper sheath and conductor insertion
  • Easy relay and branch wiring for up to 4 NM cables
  • Quick-release levers for easy disconnection and reconfiguration
  • Stranded wire compatible — use with VCTF Cover & Pin Terminals to connect stranded wires as if they were solid, enabling secure connections to the Terminal Block
Specifications
  • Part Name: Terminal Block - Single Line

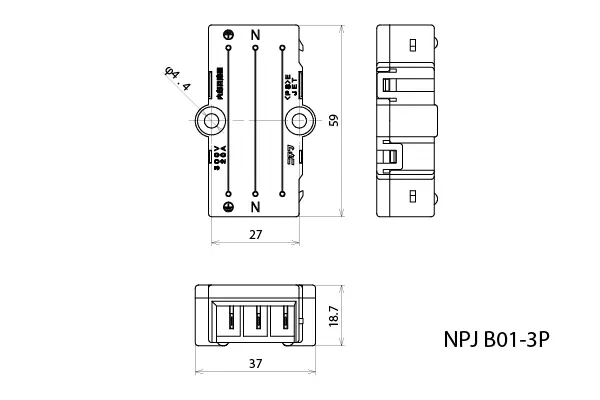

  • Length: 59mm / 2.32"
  • Width: 28.9mm / 1.14"
  • Height: 17.8mm / 0.7"
  • Insulation maximum operating temperature: 248°F / 120°C
  • Rated Voltage / Current: 300V / 20A
  • Applicable Wire Size Range for Solid Wire (mm): 1.60, 2.00
  • Material: Polycarbonate (Flame retardance UL94V-0)
  • Material (Connector Contact): Tin plated copper alloy
  • Standards: UL94V-0,
