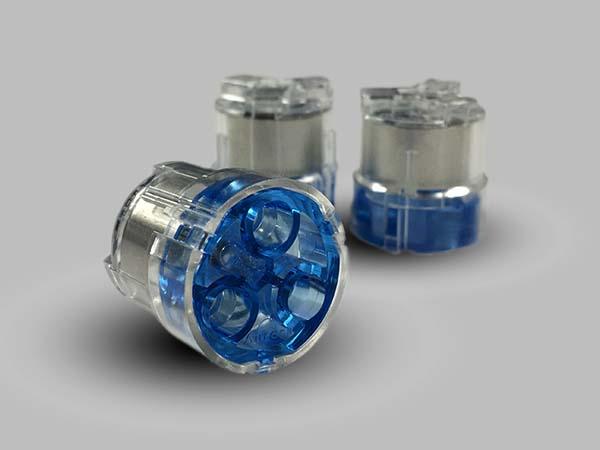

Push-In Wire Connectors - QLXL

(QLXL3)
0
Package Qty: 20
Quantity:

Features
  • Supports 12 & 10 AWG cables
  • Accepts both solid wire and stranded wire (up to 7 strands)
  • Transparent housing provides visual confirmation of proper insertion

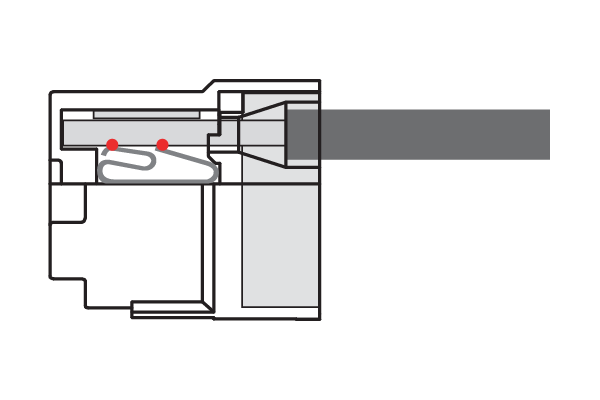

  • Double spring contact ensures a secure, long-lasting connection
  • Compact body saves space in junction boxes
  • Reusable design — twist, re-strip, and reconnect
Specifications
  • AWG: 12-10
  • Pole: 3
  • Diameter: 22.0mm / 0.87"
  • Length: 23.0mm / 0.91"
  • Rated Voltage / Current: 300V / 40A (Max)
  • Wire Size Range for Solid Wire (mm): 2.0, 2.6
  • Wire Size Range for Stranded Wire (mm²): IV 5.50
  • Material (Connector Contact): Oxygen free copper (tin plated)
  • Material (Housing): Polycarbonate (UL94V2)
  • Material (Spring): Stainless steel
  • Standards: E JET
  • RoHS: RoHS 10
