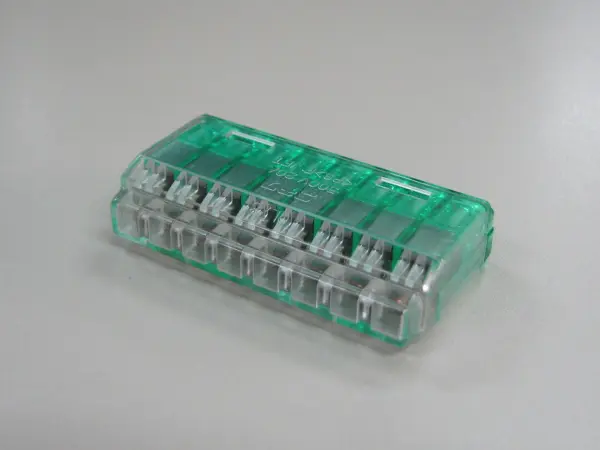

Push-In Wire Connector, 8-pole

(QLX 8)
0
Package Qty: 20
Quantity:

Features
  • Supports 14 & 12 AWG cables
  • Accepts both solid wire and stranded wire (up to 7 strands)
  • UL Listed (QLX 2–8) for safety and compliance
  • Transparent housing provides visual confirmation of proper insertion
  • Double spring contact ensures a secure, long-lasting connection
  • Available in 2–8 pole sizes, color-coded for quick identification
  • Compact body saves space in junction boxes
  • Reusable design — twist, re-strip, and reconnect
Specifications
  • AWG: 14-12
  • Pole: 8
  • Length: 20.5mm / 0.81"
  • Width: 39.2mm / 1.54"
  • Height: 9.1mm / 0.36"
  • Rated Voltage / Current: 300V / 20A
  • Material (Spring): Stainless steel
  • Wire Size Range for Solid Wire (mm): 1.60-2.00
  • Material (Connector Contact): Oxygen free copper (tin plated)
  • Material (Housing): Polycarbonate (UL94V2)
  • Color: Green
  • Standards: JIS, UL, VDE
  • RoHS: RoHS 10
