QLX Series
∕ Push-In Wire Connector, 3-pole

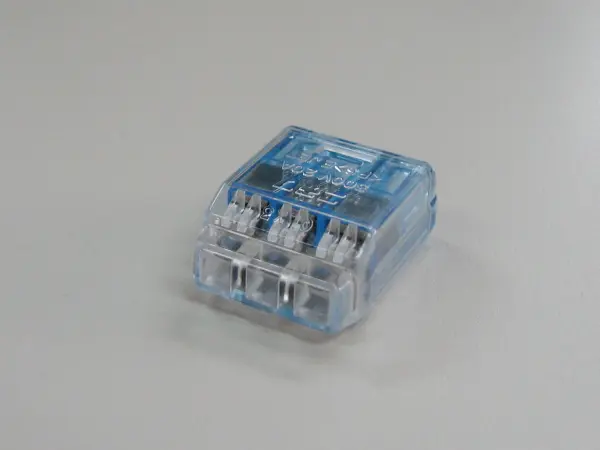

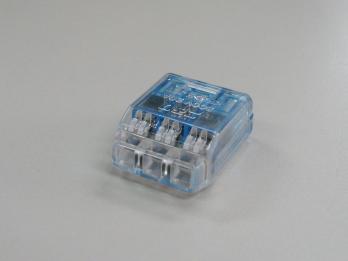

Push-In Wire Connector, 3-pole
(QLX 3)
0
Package Qty: 50
Quantity:
Add to Quote
Features
Clear translucent housing enables visual inspection of correct wire installation.
Reliable, double contacts for higher reliability.
Simply strip and insert for instant connection.
Waved copper contact for easier insertion of wire.
Specifications
Pole:
3
Height:
9.1mm / 0.36"
Material (Spring):
Stainless steel
Wire Size Range for Solid Wire (mm):
1.60-2.00
Material (Connector Contact):
Oxygen free copper (tin plated)
Rated Voltage / Current:
300V / 20A
AWG:
14-12
Material (Housing):
Polycarbonate (UL94V2)
Standards:
JIS, UL, VDE
Length:
20.5mm / 0.81"
RoHS:
RoHS 10
Width:
16.2mm / 0.64"
Color:
Blue
