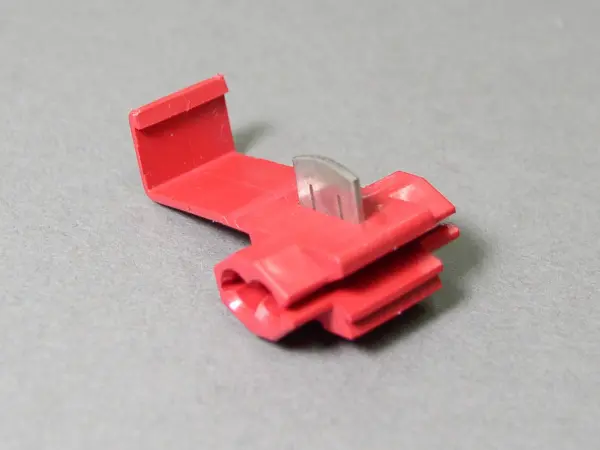

Plier Tap Connectors (PT)

(PT V-09S)
0
Package Qty: 100
Quantity:

Features
  • For stranded wire, diameter of the strand must be larger than 0.32mm. Insulation of the wire should be PVC.
  • Plier tap connector is not suitable for certain electric wiring. Contact us for further information.
Specifications
  • Nominal Size: 0.9mm²
  • Type of branch: 1 branch
  • L: 20mm / 0.79"
  • W: 15.6mm / 0.61"
  • t: 10mm / 0.39"
  • Wire Size Range for Solid Wire (mm): 0.65-1.0
  • Wire Size Range for Stranded Wire (mmø|): 0.5-0.9
  • AWG: 20-18
  • Max. Wire O.D.: 3.05mm / 0.12"
  • Color: Red
  • Material (Connector Contact): Brass (Tin plated)
  • Material (Body): Polypropylene
  • Rated Voltage: 600V
  • Rated Current: 7A (0.9mm²) / 15A (2.0mm²)
