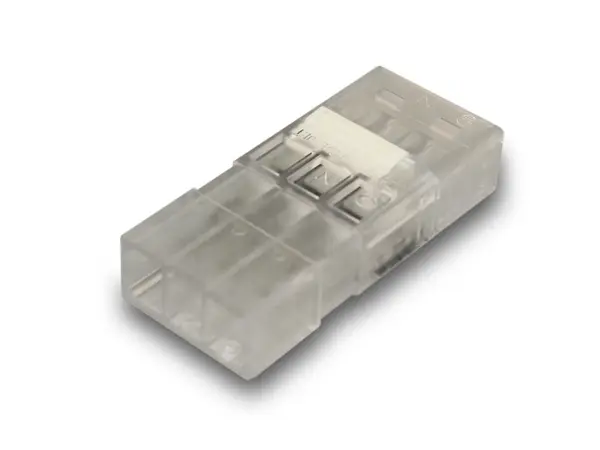

Mini Plug Joint Connectors - Receptacle Connector
(NPJM R01-3P)
0
Package Qty: 20
Quantity:
Add to Quote
Specifications
Length:
49mm / 1.93"
Width:
22.7mm / 0.89"
Height:
10.4mm / 0.41"
Insulation maximum operating temperature:
248°F / 120°C
Rated Voltage / Current:
300V / 20A
Material:
Polycarbonate Frame retardance UL94V-0)
Standards:
UL94V-0,
Applicable Wire Size Range for Solid Wire (mm):
1.60, 2.00
Material (Connector Contact):
Tin plated copper alloy
