NDC2420
∕ Insulation Displacement Connectors (IDC) - NDC 2420

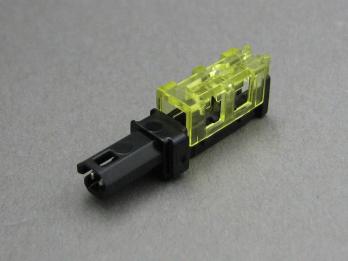

Insulation Displacement Connectors (IDC) - NDC 2420
(NDC 2420)
7.03
Package Qty: 200
Quantity:
Add to Quote
Features
Easy connection by using pliers.
No need for wire stripping.
Simple structure for single connection.
Specifications
L1:
25.9mm / 1.02"
L2:
44mm / 1.73"
w:
5.8mm / 0.23"
h:
6.4mm / 0.25"
Rated Voltage:
100V
Material (Housing):
Polycarbonate (Black)
Standards:
UL, VDE
RoHS:
RoHS 10
Wire Size Range for Solid Wire (mm):
0.65
Wire Size Range for Stranded Wire (mm²):
0.20-0.50
AWG:
24-20
Max. Wire Outside Diameter:
2.1mm / 0.08"
Rated Current:
2A (AWG 24-22), 3A (AWG 20)
Insulation Maximu Operating Temperature:
248°F / 120°C
Working Temperature Range:
32°F to 104°F / 0°C to 40°C
Material (Cover):
Polycarbonate (Yellow Translucent)
Material (Connector Contact):
Pre-tin plated phosphor bronze
