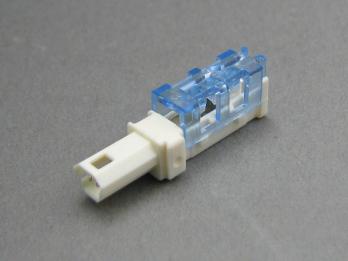

Insulation Displacement Connectors (IDC) - NDC 2824

(NDC 2824)
0
Package Qty: 200
Quantity:

Features
  • Simple structure for single connection.
  • No need for wire stripping.
  • Easy connection by using pliers.
Specifications
  • AWG: 28-24
  • L1: 25.9mm / 1.02"
  • L2: 44mm / 1.73"
  • h: 6.4mm / 0.25"
  • w: 5.8mm / 0.23"
  • Wire Size Range for Stranded Wire (mm²): 0.08-0.20
  • Wire Size Range for Solid Wire (mm): 0.40-0.50
  • Max. Wire Outside Diameter: 1.6mm / 0.06"
  • Rated Current: 1A (AWG 28-26), 2A (AWG 24)
  • Rated Voltage: 100V
  • Insulation Maximu Operating Temperature: 248°F / 120°C
  • Working Temperature Range: 32°F to 104°F / 0°C to 40°C
  • Material (Housing): Polycarbonate (White)
  • Material (Cover): Polycarbonate (Blue Translucent)
  • Material (Connector Contact): Pre-tin plated phosphor bronze
  • Standards: UL, VDE
  • RoHS: RoHS 10
