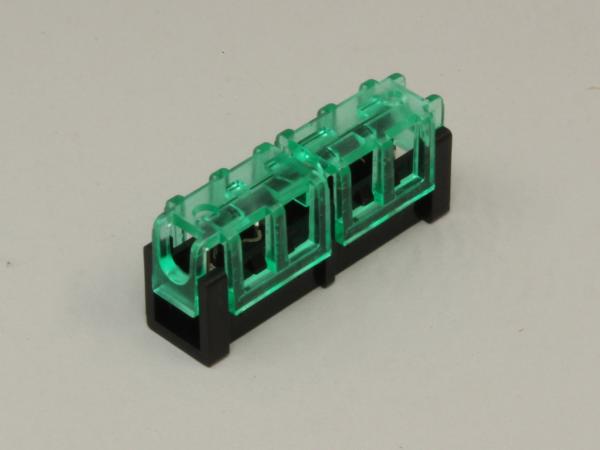

Insulation Displacement Connectors (IDC) - NDB 2018
(NDB 2018)
0
Package Qty: 100
Quantity:
Add to Quote
Features
Simple structure for single connection.
No need for wire stripping.
Easy connection by using pliers.
Specifications
AWG:
20-18
L1:
25.2mm / 0.99"
w:
7.5mm / 0.3"
h:
7.8mm / 0.31"
Wire Size Range for Stranded Wire (mm²):
0.50-0.75
Wire Size Range for Solid Wire (mm):
-
Max. Wire Outside Diameter:
2.8mm / 0.11"
Rated Current:
6A (AWG 20), 8A (AWG 18)
Rated Voltage:
300V
Insulation Maximu Operating Temperature:
248°F / 120°C
Working Temperature Range:
32°F to 104°F / 0°C to 40°C
Material (Housing):
Polycarbonate (Black)
Material (Cover):
Polycarbonate (Green Translucent)
Material (Connector Contact):
Pre-tin plated phosphor bronze
RoHS:
RoHS 10
