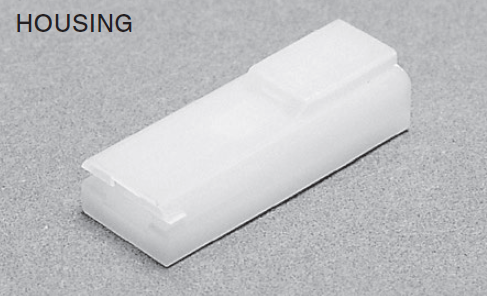

Easy Lock Connectors - 250 Series - Housing

(NEP 1-63-1P-V2)
0
Package Qty: 500
Quantity:

Features
  • Locking mechanism assures the safety of the connection by preventing withdrawal from vibration or wire tension.
  • Very low insertion force is required to insert a mated tab. Operators can connect easily.
  • As same as insertion, very low withdrawal force is required. Just squeeze to release the locking mechanism, and pull off the housing.

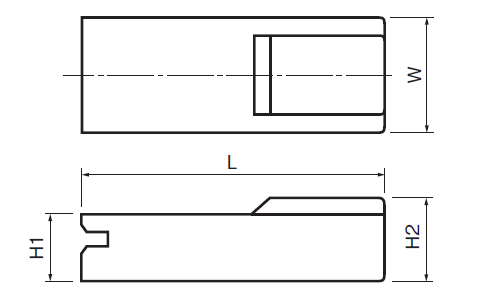

Specifications
  • W: 9.1mm / 0.36"
  • H1: 5.1mm / 0.2"
  • H2: 6.3mm / 0.25"
  • L: 24.6mm / 0.97"
  • Pole: 1
  • Material (Housing): Nylon 66 (94V-2)
  • Color: White
  • Applicable Terminals: CSS 66393-F3-1, CSS 66325-F3-1
  • Rated Voltage / Current: AC 250V / 13A
  • Insulation Resistance: 1000MΩ
  • Withstand Voltage: AC2000V
  • Insulation Temperature: -40°F to 221°F (-40°C to 105°C)
  • Standards: UL, CSA
  • RoHS: RoHS 10
